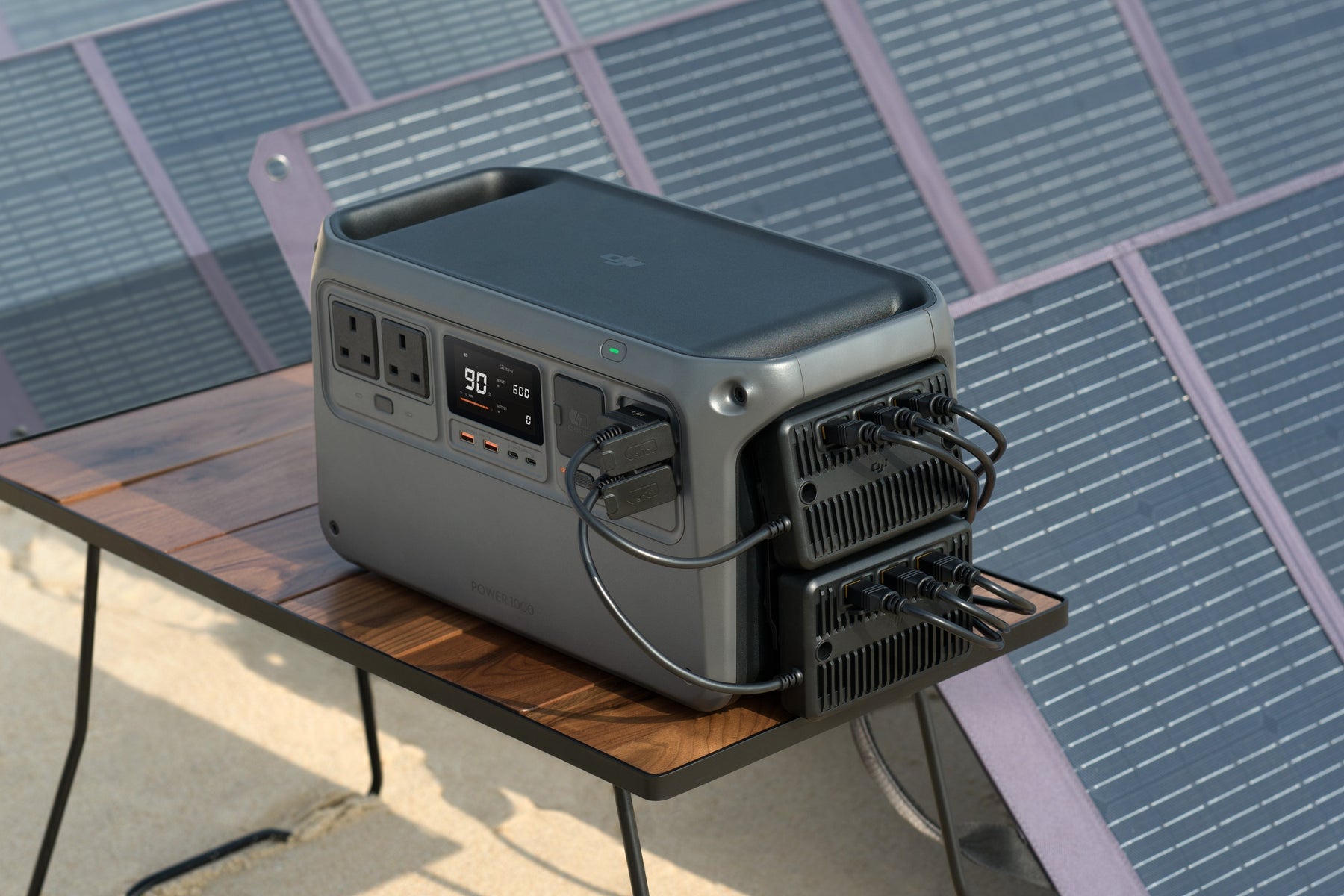

Once connected to the DJI Power solar panel adapter module (MPPT), users can utilize the XT60 interface on the panel to connect the solar panel and efficiently charge the DJI Power series using solar energy. This environmentally-friendly option offers a sustainable source of power for the DJI Power series.
Tips:
1. A single transfer module can connect up to three solar panels.
2. If you need to use a solar panel that is not officially recommended by DJI, to avoid damaging the adapter module and power supply, make sure that the open circuit voltage of the solar panel is less than 30 volts, and the power output of a single solar panel cannot be higher than 200 watts. The upper limit of the output power of the solar panel connected to the module is 400 watts.
3. When using the transfer module with a solar panel, please install the heat dissipation bracket included in the package.
4. When used with DJI Power 500, the maximum output power of the solar panel connected to the entire adapter module is 300 watts.

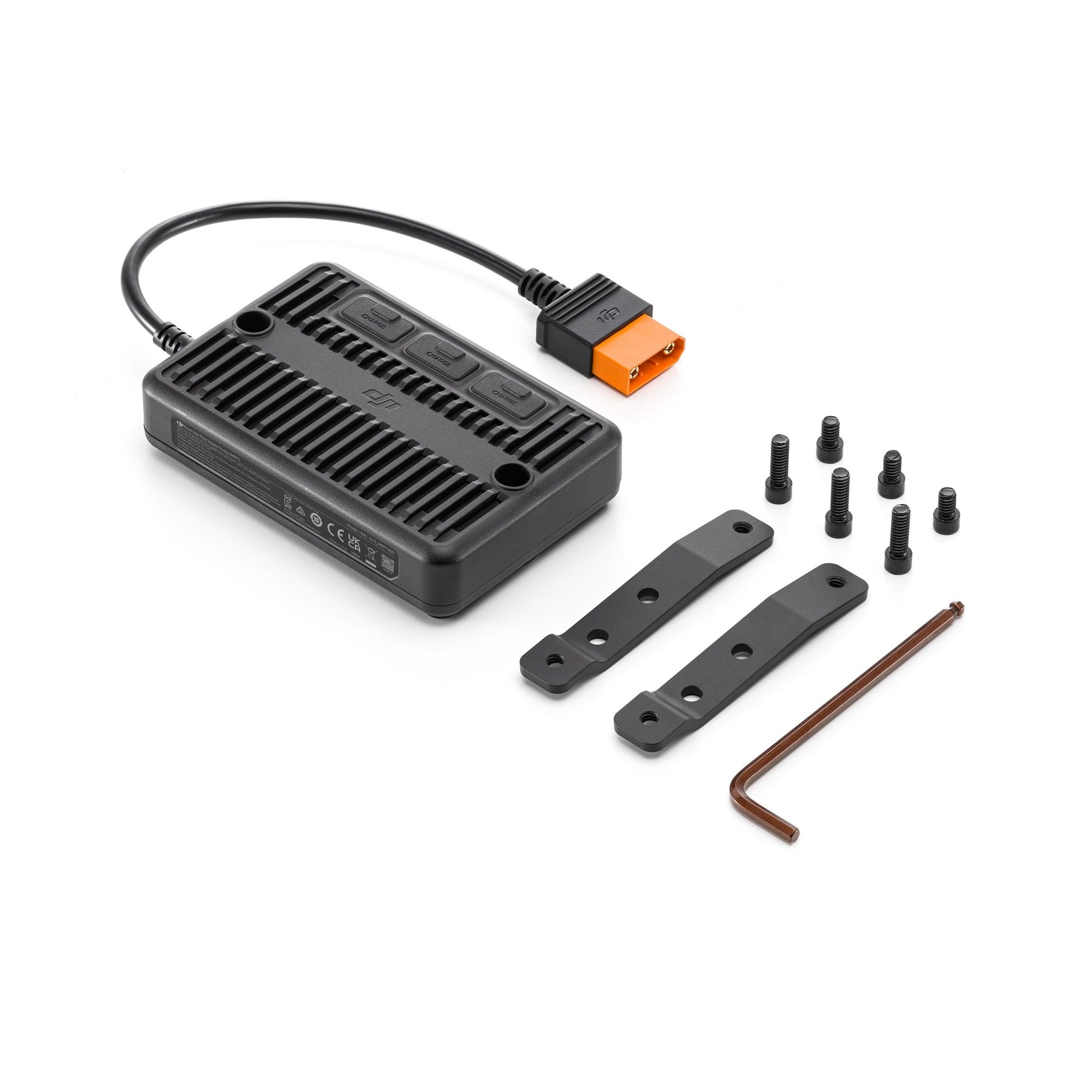

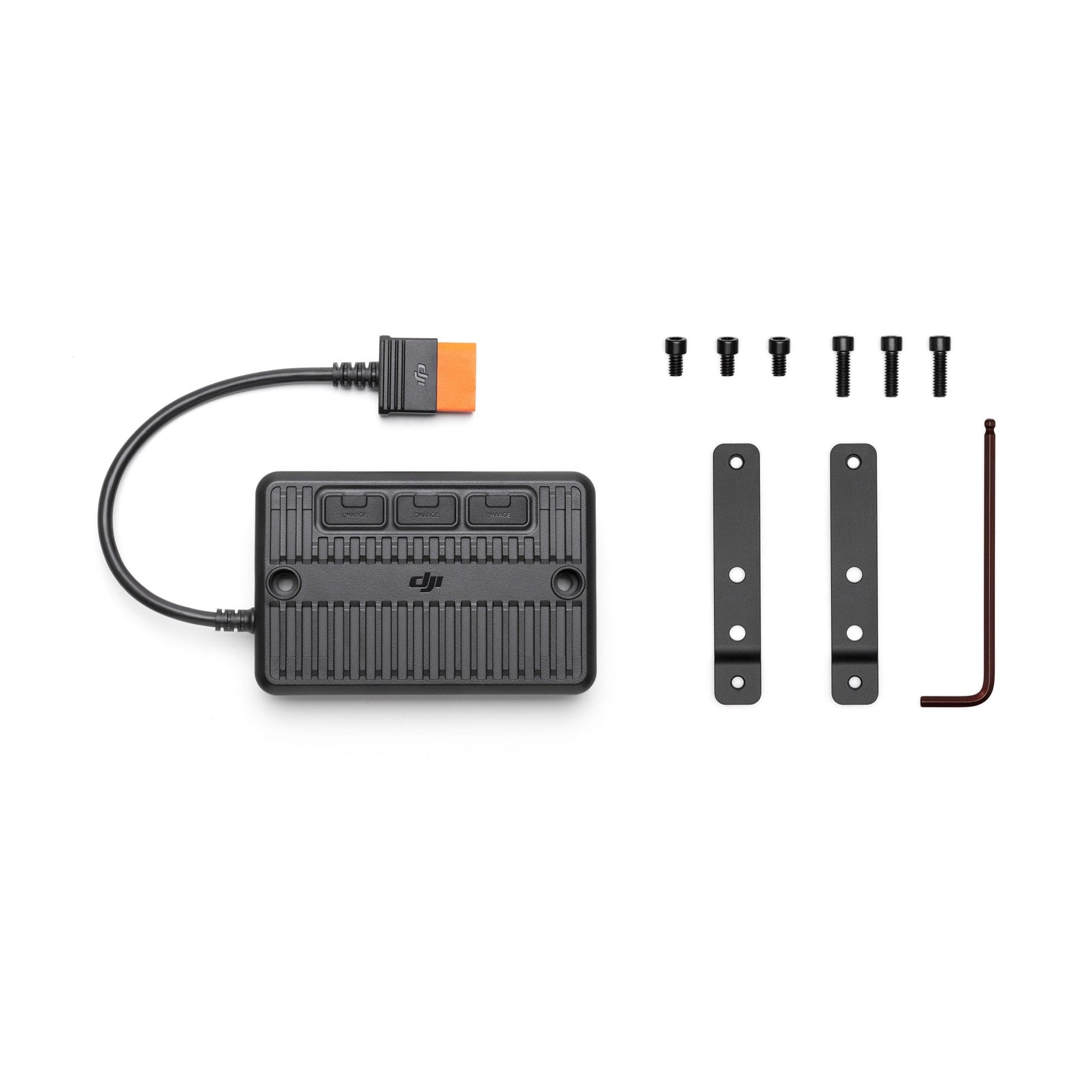

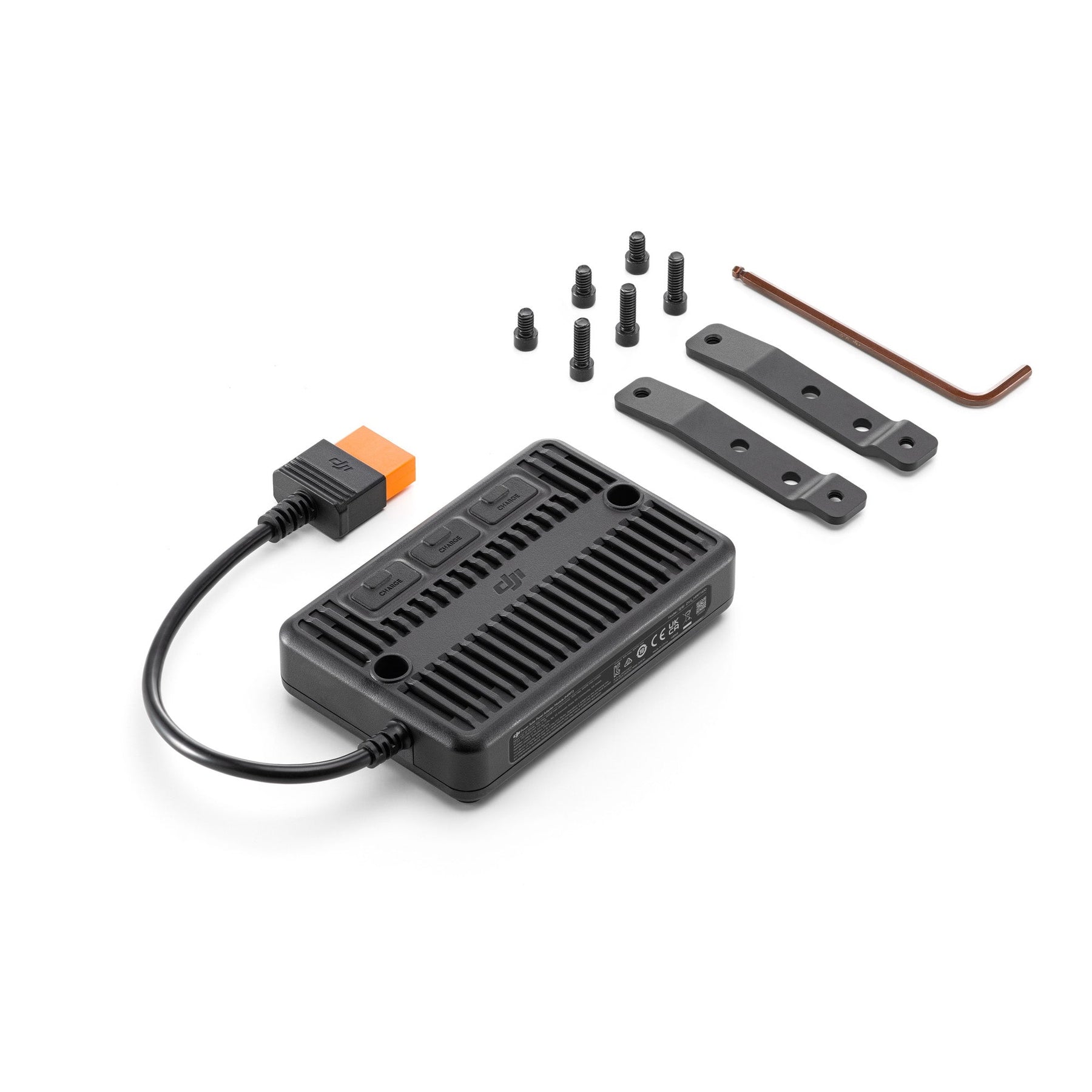

In The Box:
DJI Power Solar Panel Adapter Module (MPPT) × 1
Metal heat dissipation bracket × 2
Allen wrench × 1
10mm screw × 3
20mm screw × 3
Specifications:
Total module power output: Single way: 200 watts maximum Three-way: Maximum 400 watts (with DJI Power 1000) Maximum 300 watts (with DJI Power 500)
Module input voltage: 12 V to 30 V, DC
Module maximum input current: Single channel: 10 A Three way: 16 A
